Product description:

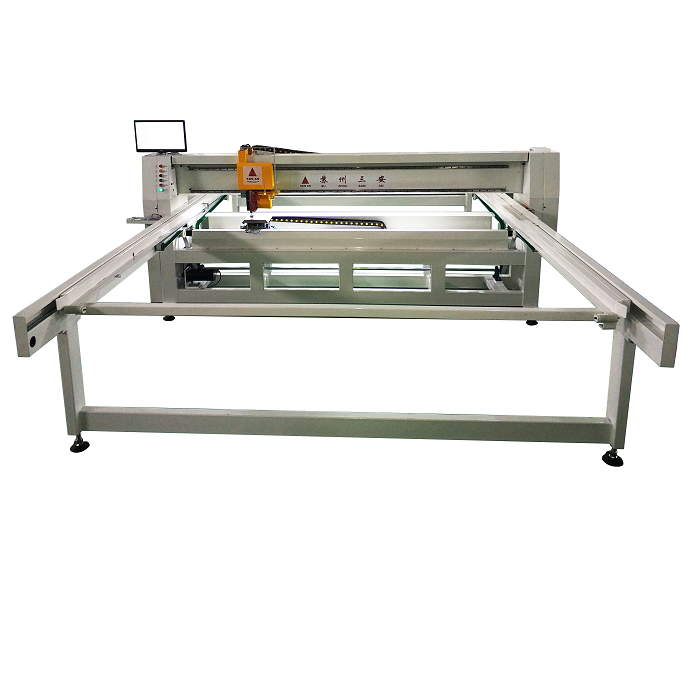

HFJ-GT series of computer quilting machine is the production of a variety of bed, electric hood sewing equipment, sewing high efficiency, beautiful appearance, fine graphics. The product is our latest research and development of high-end quilting equipment, using the upper and lower spindle synchronous servo control system, while X and Y to the cloth into the system, the servo system to improve the speed and sewing accuracy; extended high-speed state Under the service life of parts, reducing noise and improve the reliability of the operation of the machine. Leading peer, domestic initiative.

Specification:

Computerized Quilting Machine GT Features:

Lifting and trimming;
Thick mats can be produced;
Stretch pull;
LED lamp lighting;
The main shaft is driven by power up and down, the movement of the head adopts linear guide rail. The movement precision is high, and the noise is low;
The reliable industrial control system is adopted, the main shaft adopts AC servo system, X and Y adopt stepping drive system;
You can use USB flash disk to copy patterns and other files, and support USB hot plug;
Through the pattern management function, it is very convenient to copy and delete the pattern files;
With pattern browsing function, it can automatically recognize a variety of pattern formats, and can rotate and mirror images;
Work piece and reset function, work statistics function;
Forward and backward two solid needle distance can be treated specially, and the stitch length can be changed;
The pattern track finding function is used to quickly locate a point in the pattern figure and begin quilting;
Real time display quilting status and prompt operation method;
Can be forward or reverse quilting, and provide empty in, empty, retreat, thread and other buttons;
By setting and modifying functions, it is convenient to set and modify the frame limit;
Position shift fine adjustment function, can be accurate to quilting seams etc.;
The pattern can be automatically scaled through the setting of boundaries and patterns;
The hydraulic pressure centralized oil supply device is used in the machine head, which is simple and reliable to use;
The machine head provides two sets of dynamic presser foot and fixed presser foot, and the utility model has the advantages of convenient replacement;
Single head, single needle, double line locking stitch, big rotary shuttle;
The actual power consumption of the machine is less than 1 kw;
Stop time, the needle automatically stops in the high I broken line detection function, automatic shutdown when the section line;
System test function, can quickly detect the working state of the machine, used for maintenance;
Spindle fault detection function, can effectively avoid the spindle failure caused by pulling the broken bed phenomenon;
With cross boundary protection function;
Provide automatic and manual two regression origin mode, can avoid unnecessary downtime;
The head and spindle are atomized and lubricated automatically, so that the needle rod and the spindle are longer.
